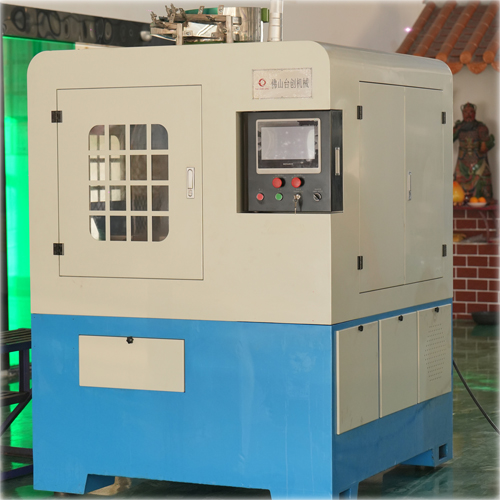

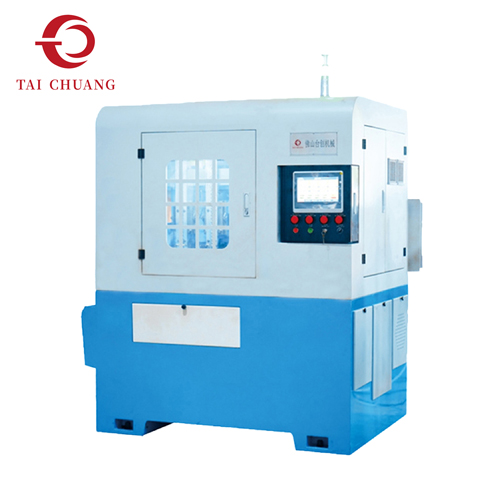

Automatic Good Factory Price Nut Tapping Machine

TAICHUANG automatic good factory price nut tapping machine provides an efficient and cost-effective solution for manufacturers looking for reliable internal thread processing equipment at a competitive factory price. Designed for continuous nut production, this automatic nut tapper can process different types and sizes of metal nuts according to the workpiece, thread specification and required production capacity.

お問い合わせを送信

製品説明

For fastener manufacturers, the Automatic Good Factory Price Nut Tapping Machine from TAICHUANG is not simply about purchase price. Stable thread quality, production efficiency, machine durability and ease of operation all affect the long‑term production cost. TAICHUANG combines automatic feeding, controlled tapping and finished‑part discharge into a practical production system that helps reduce manual handling and maintain consistent processing results.

Product specifications

TAICHUANG can provide nut tapping machine from M4-M62,with specifications below：

Item	Name	Parameter	Name	Parameters/Brand
Casting base	Pallet stroke	150mm	Main spindle servo motor	2.0Kw/3000rpm(M5-M8)
	Feed linear guideway	GHH20CAX410	Main spindle servo motor	2.5Kw/3000rpm(M6-M10)
	Feed ball screw	SFNH2020X275	Feed servo motor	0.4Kw/3000rmp
Baiting track	Baiting angle	90 degree angle	Cooling pump	370W
Main spindle	Max.processing outer diameter	∅25	Touch screen	Inovance
	Max.processing length	less than nominal thread size ×2	Main engine	Inovance
	Qty of main spindle	2	Circuit-breaker	CHNT
Fixture mode	Falt push	Square nut,hexagonal nut	Circuit-breaker	CHNT
	Clamp	round nut,flangle nut,polygonal nut	Thermal overload	CHNT
	Spring jaw	flange material	KA	IDCE
Clamping cylinder	Cylinder	SDA50X20SB	Cylinder sensor	Airtac
2 spindles	Productivity per spindle	20-30pcs/min	Power switch	Siemens
Overall Dimensions	Overall Dimensions	1150×1150×1750mm	Equipment weight	about 1500KG

Automatic Nut Tapping for Efficient Production

Traditional manual or semi-automatic tapping processes can require considerable operator involvement, particularly when large quantities of nuts need to be processed every day. An automatic nut tapping machine helps simplify this process by continuously feeding and positioning the workpieces before tapping.

Depending on the machine configuration, the system can be equipped with automatic feeding, touch-screen control, safety protection, tapping monitoring and alarm functions. This allows operators to spend less time on repetitive loading and unloading while maintaining a more consistent production cycle.

The actual production speed depends on nut dimensions, material, thread size, tapping depth and machine configuration. Customers can provide a drawing or sample so TAICHUANG can recommend a suitable model and evaluate the expected output.

Why Choose a Factory Price Nut Tapping Machine?

A competitive machine price is important, but purchasing a low-cost machine without considering production requirements can increase maintenance and operating costs later. TAICHUANG focuses on balancing factory price, machine performance and production reliability.

Key advantages include:

Automatic nut feeding and tapping

Stable internal thread processing

Consistent production cycles

Reduced manual operation

Touch-screen control for convenient operation

Safety enclosure for improved operator protection

Tap breakage and abnormal-condition alarm functions

Automatic separation of defective parts on selected configurations

Flexible configurations for different nut specifications

Suitable for continuous fastener production

How the Automatic Nut Tapping Machine Works

1. Automatic Feeding

Nuts are supplied through an automatic feeding system, reducing the need for manual loading and helping maintain a continuous supply of workpieces.

2. Accurate Positioning

The nut is positioned before tapping to help maintain stable contact between the workpiece and tapping tool.

3. Internal Thread Tapping

The tapping system processes the internal thread according to the required specification. Proper tooling and processing parameters are selected according to the nut material and thread requirements.

4. Automatic Discharge

After tapping, finished nuts are discharged from the machine and can proceed to inspection, washing, sorting, packaging or the next manufacturing process.

This continuous workflow makes the equipment suitable for manufacturers seeking a more efficient nut production line.
